Sunway Velocity Link Bridges, Kuala Lumpur

SECTOR

Private Sector

CLIENT

Sunway Velocity Mall Sdn Bhd

STATUS

Completed

TYPE

Conventional

ARCHITECT

SAA Architect Sdn Bhd

C&S ENGINEER

EDP Consulting Sdn Bhd

M&E ENGINEER

EDP Consulting Sdn Bhd

MORE INFORMATION

N/A

Project Description

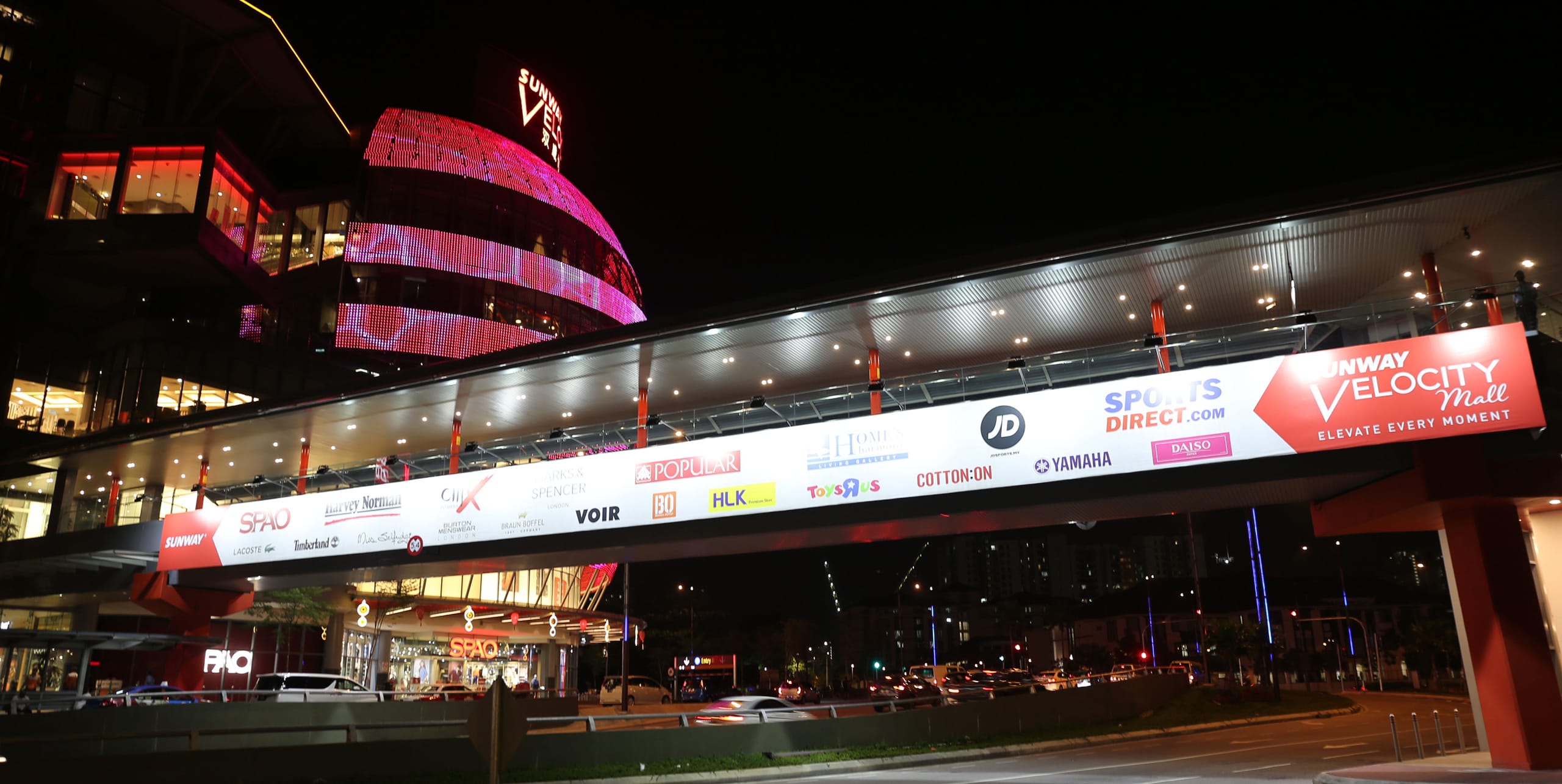

Sunway Velocity Link Bridges (SVLB) is a fully covered pedestrian bridges and walkways that provides excellent accessibility between the vibrant Sunway Velocity integrated development and public transportation network.

SVLB  consists of 2 pedestrian bridges with a total length of 227m and an attached at-grade pedestrian walkways totaling 233m.

  • First section : Maluri Link Bridge – comprises of a 62m long RC bridge connecting Sunway Velocity Mall to 2 underground train stations, ie. the MRT Maluri Station and LRT Maluri Station, via 200m long pedestrian walkway.
  • Second section : Cochrane Link Bridge – 165m long RC bridge connecting MRT Cochrane Underground Station via a hub at Sunway Velocity office block and a 33m at-grade pedestrian walkway.

SVLB was built with environmentally – friendly features such as 12-hour full LED lighting throughout the bridge, and a glass roof structure designed with low emissivity glass which improves energy efficiency.

The use of industrialized building systems such as precast T-beams (Maluri bridge), precast U-beams (Cochrane bridge), prefabricated steel structures for the bridge frame and aluminum composite panel (ACP) for the bridge façade enabled a safer construction methodology and faster construction timeframe.

SunCon adopted innovative methodologies for the construction of the project such as using platform and cantilever scaffoldings to construct the roof, providing a safe access for workers above the road with live traffic.

Award

  • 2018 Malaysian Construction Industry Excellence Award (MCIEA) The Best Infrastructure Project Award – Small category
